LUBESTAR Electric Pump
Compact and versatile, it has a unique rotary drive and modular gear configuration, allowing you to adjust the output speed of the pump
motor to suit your different applications.
Lubestar pumps can be connected to 24 V DC, and the motion generated by the motor rotation is converted into reciprocating motion of the pump, providing efficient lubricant flow. The use of efficient brushless motors, high torque output, low noise, can ensure the pump stable output of lubricant at high pressure.
The higher displacement is particularly suitable for single line lubrication systems or dual-line lubrication systems. Therefore, the pump is very compact and can be installed almost anywhere.
Specification of LUBESTAR Electric Pump
| Technical Data | |
| Functional principle | Electric piston pump |
| No. of output Port | 1 |
| Adjustable flowrate | Max. 290ml/min |
| Operating pressure | Max. 345Bar |
| Operating temperature | -40℃ ~ 65℃ |
| Valve | 24VDC |
| Maximum current | 9.6A |
| Tank capacity | 27、41、 55 kg |
| Output Port | 1/4NPTF |
| Ratio | 19:1 |
| Rated Power | 200W |
| Installation Method | vertical |
| Material | Fluororubber, polyurethane, steel, aluminum_x0002_zinc castings |
| Solenoid valve Data | |
| Maximum flow capacity | 7gpm（ 26.5L/min） |
| Maximum working pressure | 350bar |
| Switching frequency (max) | 15000 cyc/h |
| Installation torque | 20~25 lbf ft（ 27~34 N-m） |
| Viscosity Range | 2.8~380cSt |
| Rated response time | 50ms |
Characteristics of LUBESTAR Electric Pump
Brushless DC motor
Various sizes available
Temperature and overload protection, durable.
Stable pressure, smooth output
Protection level: IP65
Suitable for medium and large lubrication systems

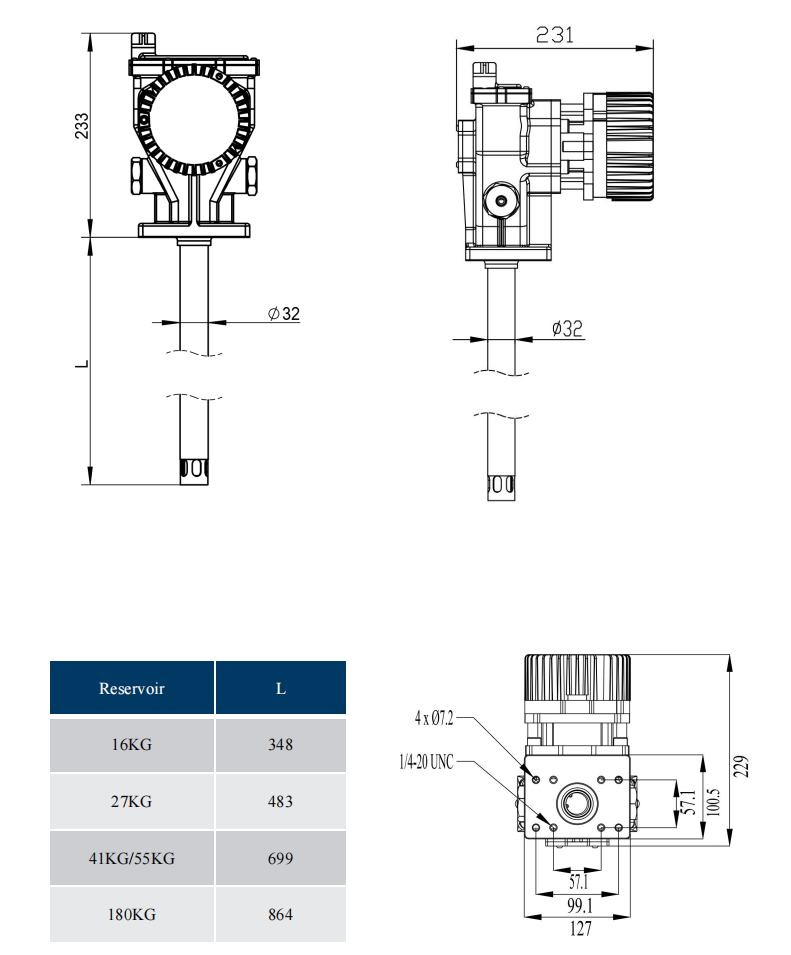

Standalone pump, without oil tank（ mm）

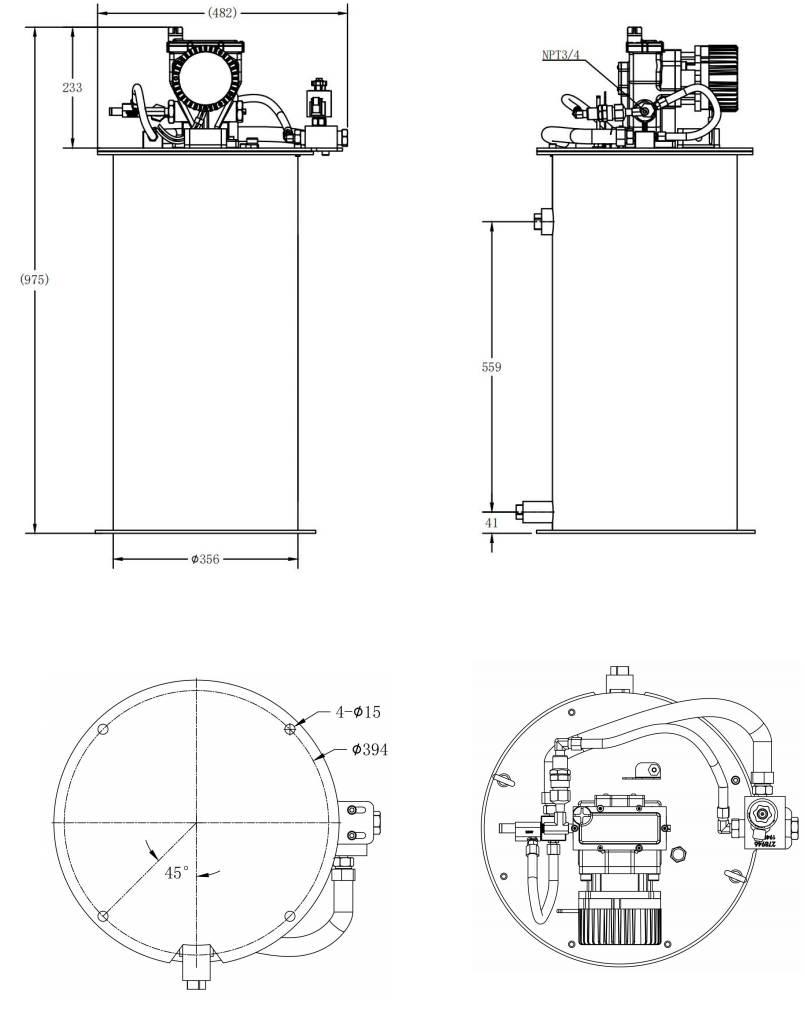

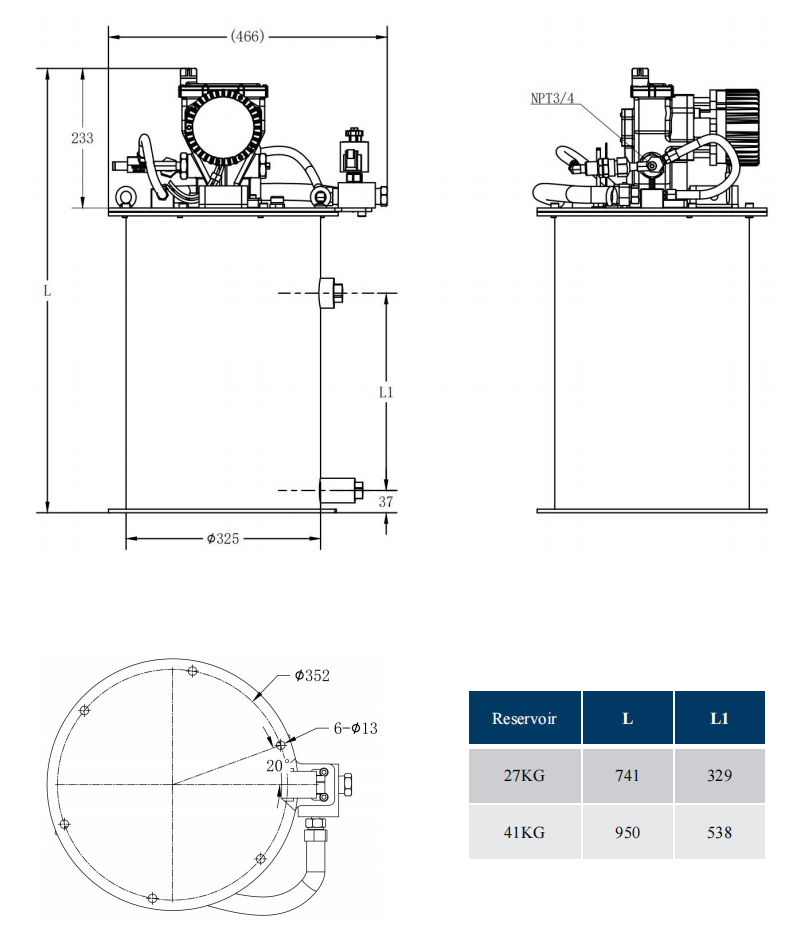

With tank dimensions(mm)
55KG
